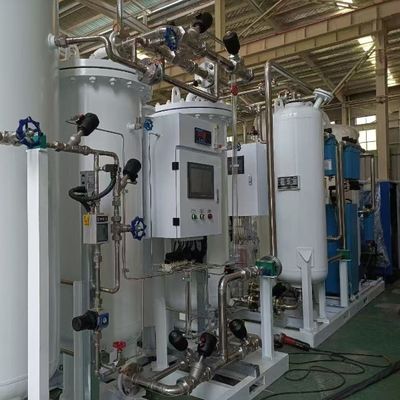

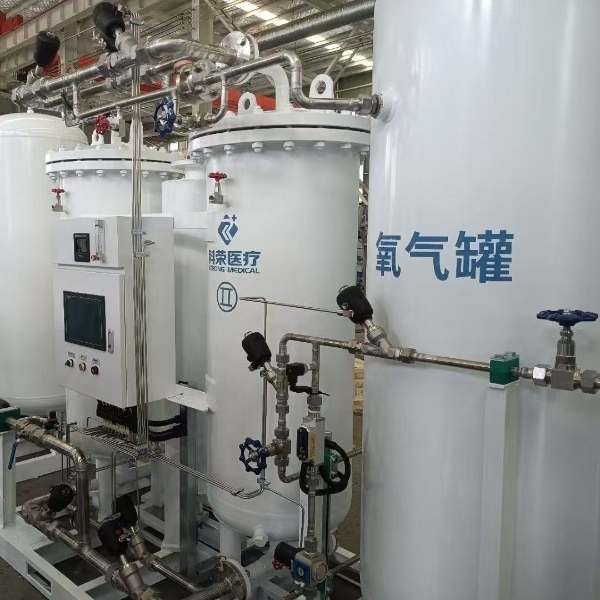

Auto 10NM3 Flow Rate ISO13485 Medical Certified Oxygen Psa Generator
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | KERONG GAS |
| إصدار الشهادات: | ISO13485，ISO9001 |
| رقم الموديل: | كرو |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1 جهاز كمبيوتر |
|---|---|
| الأسعار: | negotiable |
| تفاصيل التغليف: | صندوق خشبي |
| وقت التسليم: | 8 أسابيع |
| شروط الدفع: | خطاب الاعتماد، T/T، ويسترن يونيون، موني جرام |
| القدرة على العرض: | 1000pcs في السنة |
|
معلومات تفصيلية |
|||
| اسم: | مولد الأكسجين PSA | نقاء: | 90%~99.5% |
|---|---|---|---|
| محتوى الزيت: | خالي من الزيت | مادة: | الفولاذ المقاوم للصدأ أو الفولاذ الكربوني |
| سعة: | 5Nm3/ساعة~60Nm3/ساعة | ضغط: | قابل للتعديل |
| إبراز: | ISO13485 certified medical oxygen generator,10NM3 flow rate PSA oxygen generator,medical grade PSA oxygen generator,10NM3 flow rate PSA oxygen generator,medical grade PSA oxygen generator |
||
منتوج وصف
Auto 10NM3 Flow Rate ISO13485 Medical Certified Oxygen Psa Generator
Product description
Our Auto 10Nm³ Flow Rate ISO13485 Medical Certified Oxygen PSA Generator delivers a reliable, on-site oxygen supply for hospitals and healthcare facilities with a production capacity of 10Nm³ per hour. Engineered under ISO13485 medical standards, it provides medical-grade oxygen with purity of 93% ±3%, ensuring safe and continuous patient care. Utilizing advanced Pressure Swing Adsorption (PSA) technology, the fully automatic system separates oxygen from compressed air, maintaining stable flow and pressure with minimal supervision. Compact, skid-mounted, energy-efficient, and low-maintenance, this PSA generator eliminates reliance on cylinders or liquid oxygen, offering a cost-effective, dependable, and compliant solution for medical oxygen supply.
Technical Parameters
● Purity——93%±3% or with the oxygen purifier can get maximum 99.5%
● Pressure——0.3~0.6 Mpa or with the booster to get 30Mpa or more
● Atmospheric dew point——≤－40℃ or more
| Item | Model | Oxygen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) |
| 1 | KRO-1-95 | 1 | 95%±1% | 0.25 |
| 2 | KRO-2-95 | 2 | 95%±1% | 0.50 |
| 3 | KRO-3-95 | 3 | 95%±1% | 0.75 |
| 4 | KRO-5-95 | 5 | 95%±1% | 1.25 |
| 5 | KRO-10-95 | 10 | 95%±1% | 2.50 |
| 6 | KRO-15-95 | 15 | 95%±1% | 3.75 |
| 7 | KRO-20-95 | 20 | 95%±1% | 5.00 |
| 8 | KRO-25-95 | 25 | 95%±1% | 6.25 |
| 9 | KRO-30-95 | 30 | 95%±1% | 7.50 |
| 10 | KRO-35-95 | 35 | 95%±1% | 8.75 |
| 11 | KRO-45-95 | 45 | 95%±1% | 11.25 |
| 12 | KRO-50-95 | 50 | 95%±1% | 12.50 |
| 13 | KRO-60-95 | 60 | 95%±1% | 15.00 |
Featured Function
Online monitoring of oxygen purity, pressure, flow rate and dew point.
Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
Air dryer and air filters automatic drainer discharge.
Automatic warning of spare parts replacement.
Remote control / fully automatic
Molecular sieve automatic compaction
Pneumatic valve switching by programmable controller automatic control
The IPC, DCS, the specific configuration of other specific programs
Factory Certificates
FAQ
Q: Are you a factory or a trading company?
A:We are a factory over 20 years industrial experience.
Q: Do you offer OEM service?
A: Yes, we can customize it as your request.
Q: What is your lead time?
A: About 60~90 days after receiving deposit.
Q: What certificates do you have?
A: We have ASME, CE, ISO9001-2015, ISO13485 for medical oxygen generator. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc
Q: What about the warranty?
A: Beyond warranty period(For 12-Months against any manufacturing defect from the date equipment acceptance after commissioning or 18-months from the time of the delivery whichever comes first),supplier will provide spare parts, accessories, easily damaged parts via preferential price.
Q:What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.
Q:Which port is near to you?
A: Qingdao port or Tianjin port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.
Q:Could you offer Origin Certification.
A: we can do as your request.
