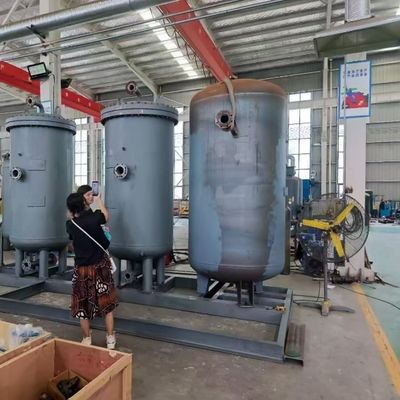

100SCFM Compact Size Nitrogen Air Separation Unit For Chemical Factory
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | KERONG GAS |
| إصدار الشهادات: | ISO9001, CE, ASME |
| رقم الموديل: | krn |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1 كمبيوتر |
|---|---|
| الأسعار: | negotiable |
| تفاصيل التغليف: | صندوق خشبي |
| وقت التسليم: | 8 أسابيع |
| شروط الدفع: | L/C ، T/T ، Western Union ، Moneygram |
| القدرة على العرض: | 1000pcs في السنة |
|
معلومات تفصيلية |
|||
| اسم: | وحدة فصل النيتروجين عن الهواء | نقاء: | 90 ٪ ~ 99.9999 ٪ |
|---|---|---|---|
| نقطة الندى: | -45 ℃ أو أكثر | مادة: | الفولاذ المقاوم للصدأ أو الصلب الكربوني |
| سعة: | 5NM3/HR ~ 5500NM3/HR | ضغط: | قابل للتعديل |
| إبراز: | compact nitrogen air separation unit,PSA nitrogen generator for chemical factory,100SCFM nitrogen gas generator,PSA nitrogen generator for chemical factory,100SCFM nitrogen gas generator |
||
منتوج وصف
| Attribute | Value |
|---|---|
| Name | Nitrogen Air Separation Unit |
| Purity | 90%~99.9999% |
| Dew point | -45℃ or more |
| Material | Stainless steel or carbon steel |
| Capacity | 5Nm3/hr~5500Nm3/hr |
| Pressure | Adjustable |
Our 100SCFM Compact Size Nitrogen Air Separation Unit is designed to provide a reliable, continuous nitrogen supply for chemical factories, delivering purity up to 99.99%. Utilizing advanced Pressure Swing Adsorption (PSA) or membrane separation technology, it efficiently separates nitrogen from compressed air at a flow rate of 100SCFM, meeting high-demand industrial requirements. The compact design integrates compressor, dryer, filtration, and control systems into a space-saving, skid-mounted unit for easy installation and operation. Fully automatic, energy-efficient, and low-maintenance, this nitrogen generator ensures safe, cost-effective, and consistent nitrogen delivery, supporting chemical processes that require high-purity, uninterrupted nitrogen supply.
| Model | Nitrogen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) | Net dimensions(mm) |
|---|---|---|---|---|
| KRN159 | 7 | 99 | 0.33 | 1200*600*1900 |
| 6 | 99.5 | 0.32 | ||
| KRN219 | 15 | 99 | 0.7 | 1200*600*1900 |
- Online monitoring of oxygen purity, pressure, flow rate and dew point.
- Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
- Air dryer and air filters automatic drainer discharge.
- Automatic warning of spare parts replacement.
- Remote control / fully automatic
- Molecular sieve automatic compaction
- Pneumatic valve switching by programmable controller automatic control
- The IPC, DCS, the specific configuration of other specific programs
